ROTOPLAY® Products: PLAYGROUND SLIDES

ROTOPLAY® manufactures Playground Slides within the European Community.

High Quality and resistance guaranteed.

SERIE T SLIDES

MATERIAL: PE

2 ways of installation:

1. With foundations, on non-compact grounds

Available colours:

How to fix it to platform:

AVAILABLE MODELS

Model T170

Height: 1.700 mm. Length: 2.648 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

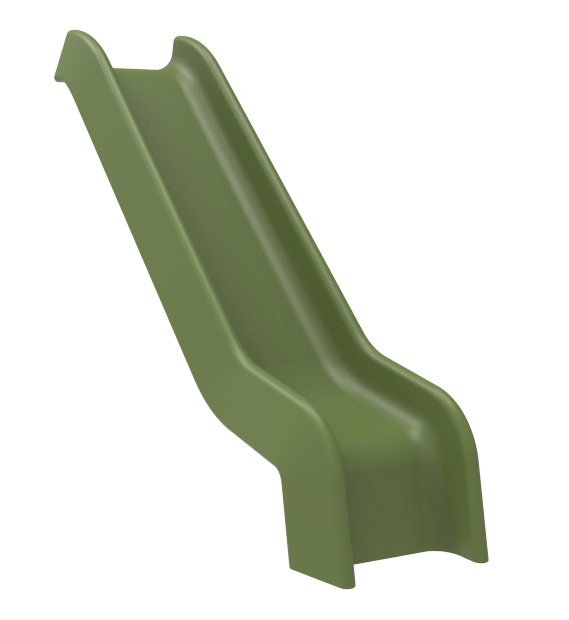

Model T150

Height: 1.500 mm. Length: 2.243 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T140

Height: 1.400 mm. Length: 2.279 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T130

Height: 1.300 mm. Length: 2.154 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T120

Height: 1.200 mm. Length: 2.030 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

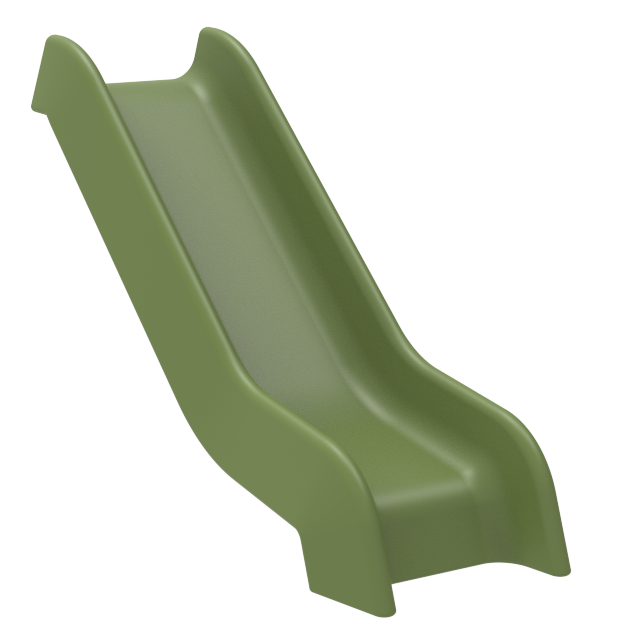

Model T100

Height: 1.000 mm. Length:1.784 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T90

Height: 900 mm. Length: 1.660 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T60

Height: 600 mm. Length: 1.115 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 1.000mm.

ROTOPLAY® , manufacture of components for playgrounds.

ECOLOGICAL ECO-T SLIDES

The range of Ecological Eco-T Slides is an environment-friendly proposal of slides unique in the sector. For production, the environmental impact has been minimized to the maximum by replacing petrochemical-based raw materials together with others of natural origin, using recycled materials and optimizing the operation of industrial processes.

SERIE ECO-T SLIDES

Material PE + Rice husk

The Eco-T series is produced with a material composed of 15% of raw material of vegetable origin (Rice husk) and 85% of Low Density Linear Polyethylene.

The use of rice husks also improves the final quality of the product, providing structural advantages.


50% RECYCLED SERIE-T SLIDES

50% Recycled PE Material

Our T-Series slides made from 50% recycled PE are produced from a mix of virgin Polyethylene and post-consumption plastics in the same proportion.

Those models offer at the same time an ecological option and the availability of two cheerful colours.

PURE REYCLED SERIE-T SLIDES

100% Recycled PE Material

The “Pure Recycled” T-Series slides are made from 100% recycled PE. This proposal gathers the idea of integrating the circular economy into our production process and adapting it to the market needs. Due to it 100% recycled provenance, only black colour is available.

AVAILABLE MODELS

Model T170

Height: 1.700 mm. Length: 2.648 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T150

Height: 1.500 mm. Length: 2.243 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T140

Height: 1.400 mm. Length: 2.279 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T130

Height: 1.300 mm. Length: 2.154 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T120

Height: 1.200 mm. Length: 2.030 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T100

Height: 1.000 mm. Length:1.784 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T90

Height: 900 mm. Length: 1.660 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T60

Height: 600 mm. Length: 1.115 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 1.000mm.

ROTOPLAY® , manufacture of components for playgrounds.
