ROTOPLAY®: ECO Playgrounds Products

ROTOPLAY® manufactures ECO Playground Products within the European Community.

High Quality and resistance guaranteed.

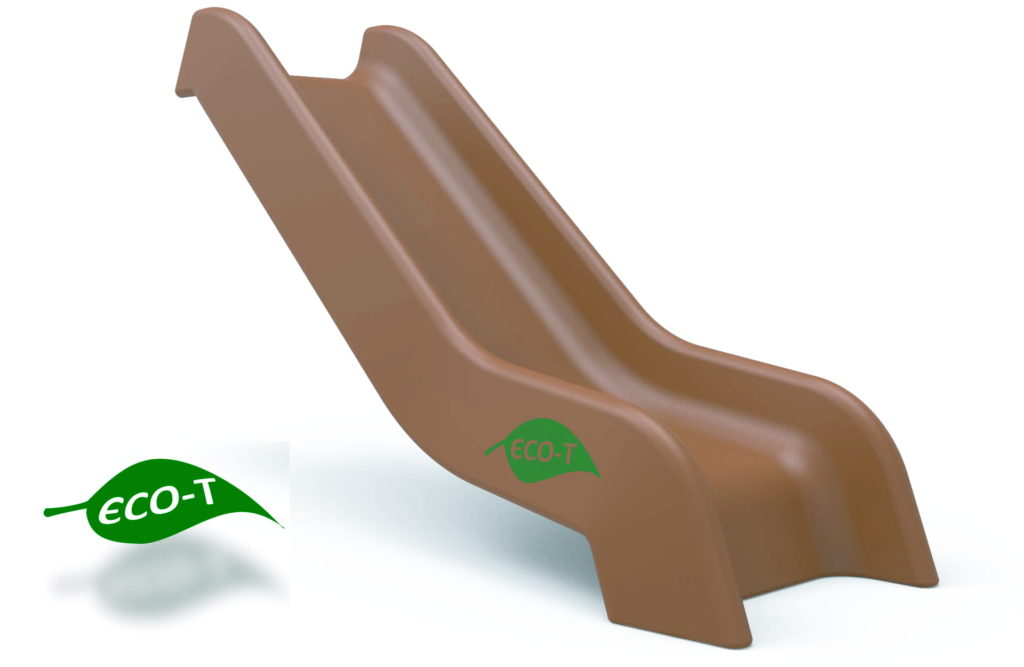

SERIE ECO-T SLIDES

PE 100% Recycled or Rice Husk

The range of Eco-T Slides is an ecological proposal of slides unique in the world. For production, the environmental impact has been minimized to the maximum by replacing petrochemical-based raw materials together with others of natural origin, optimizing the operation of industrial processes and using recyclable materials.

The Eco-T series is produced with a material composed of 15% of raw material of vegetable origin (Rice husk) and 85% of Low Density Linear Polyethylene. This helps to reduce the environmental impact of the product over its lifecycle, since the content of petrochemical-based products is reduced and also at the end of its useful life, it can be recycled. The use of rice husks also improves the final quality of the product, providing structural advantages. ECO-T Slides is a high quality playground component.

AVAILABLE MODELS

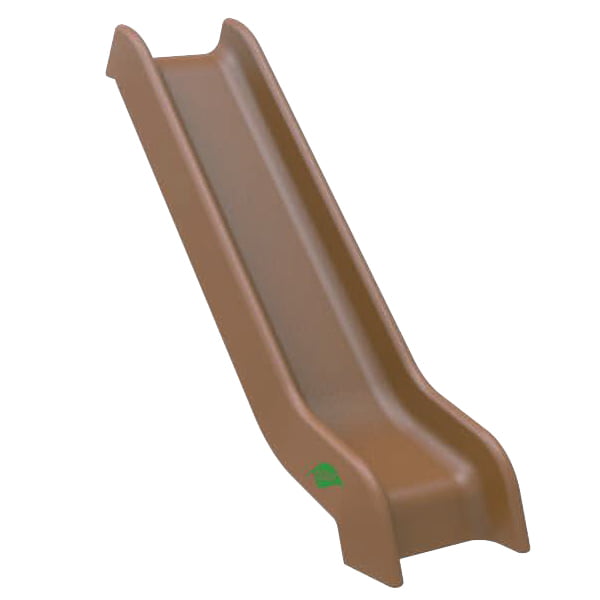

Model T150

Height: 1.500 mm. Length: 2.243 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T140

Height: 1.400 mm. Length: 2.279 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T130

Height: 1.300 mm. Length: 2.154 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T120

Height: 1.200 mm. Length: 2.030 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T100

Height: 1.000 mm. Length:1.784 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

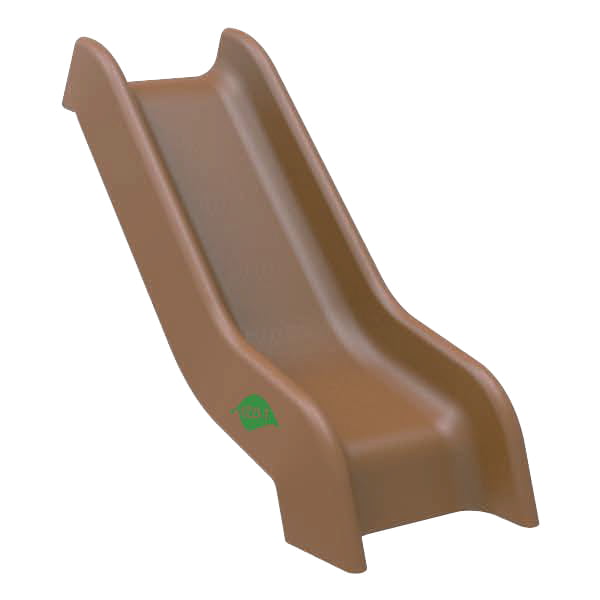

Model T90

Height: 900 mm. Length: 1.660 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 2.000mm.

Model T60

Height: 600 mm. Length: 1.115 mm. Width: 657 mm. Slope: 39°. Fall radius area on the highest point of the slide: 1.500 mm. Length of the impact area: 1.000mm.

ECO INCLUSIVE SWING SEAT

PE 100% Recycled or Rice Husk

Two ECO Models Available!!

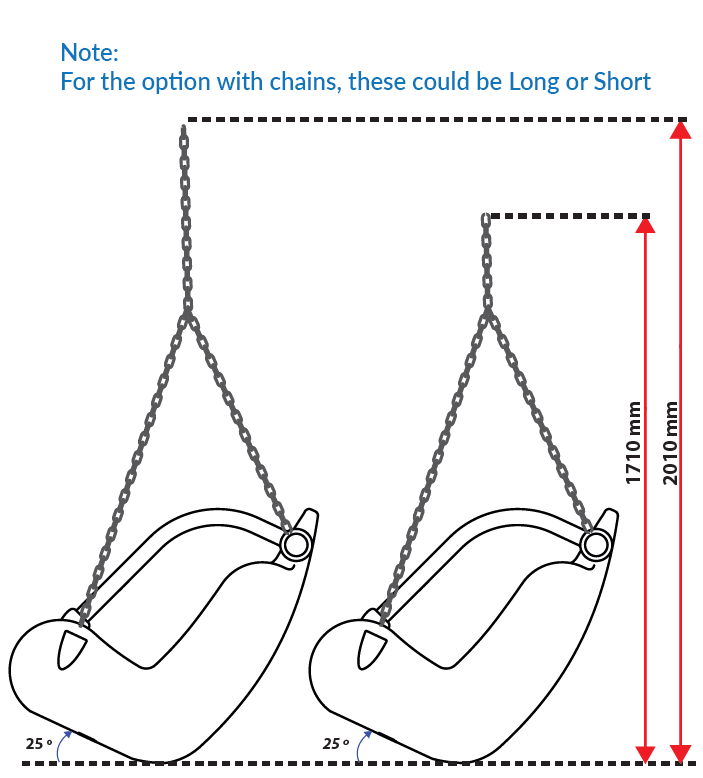

Inclusive Swing Seat is available in two ECO models. One of them with 100% recycled PE and another model with PE+Rice Husk. Both models are available with harness or seat belts and chains and without chains.

The PE Pure Recycled version is composed of recycled PE from the waste generated in ABC Rotomoldeo by the leftovers of the finished parts.

The PE + rice husk version is manufactured with mixture composed of 15% Raw material of vegetable origin (rice husk) and 85% Linear Low density polyethylene.

With these two versions we help to reduce the environmental impact of the product throughout its life cycle, since we reduce the content of petroleum-based materials and also at the end of its useful life, can be recycled.

Pure Recycled Model

COLOURS

The PE Pure Recycled version is available only in the color of the image.
(For Harness models, the lock will be always in blue colour)

Rice Husk Model

COLOURS

The PE + rice husk version is available only in the color of the image.
(For Harness models, the lock will be always in blue colour)

Recommended Age: 5-14 years. Maximum load: 120Kg.

ROTOPLAY® , manufacture of components for playgrounds.

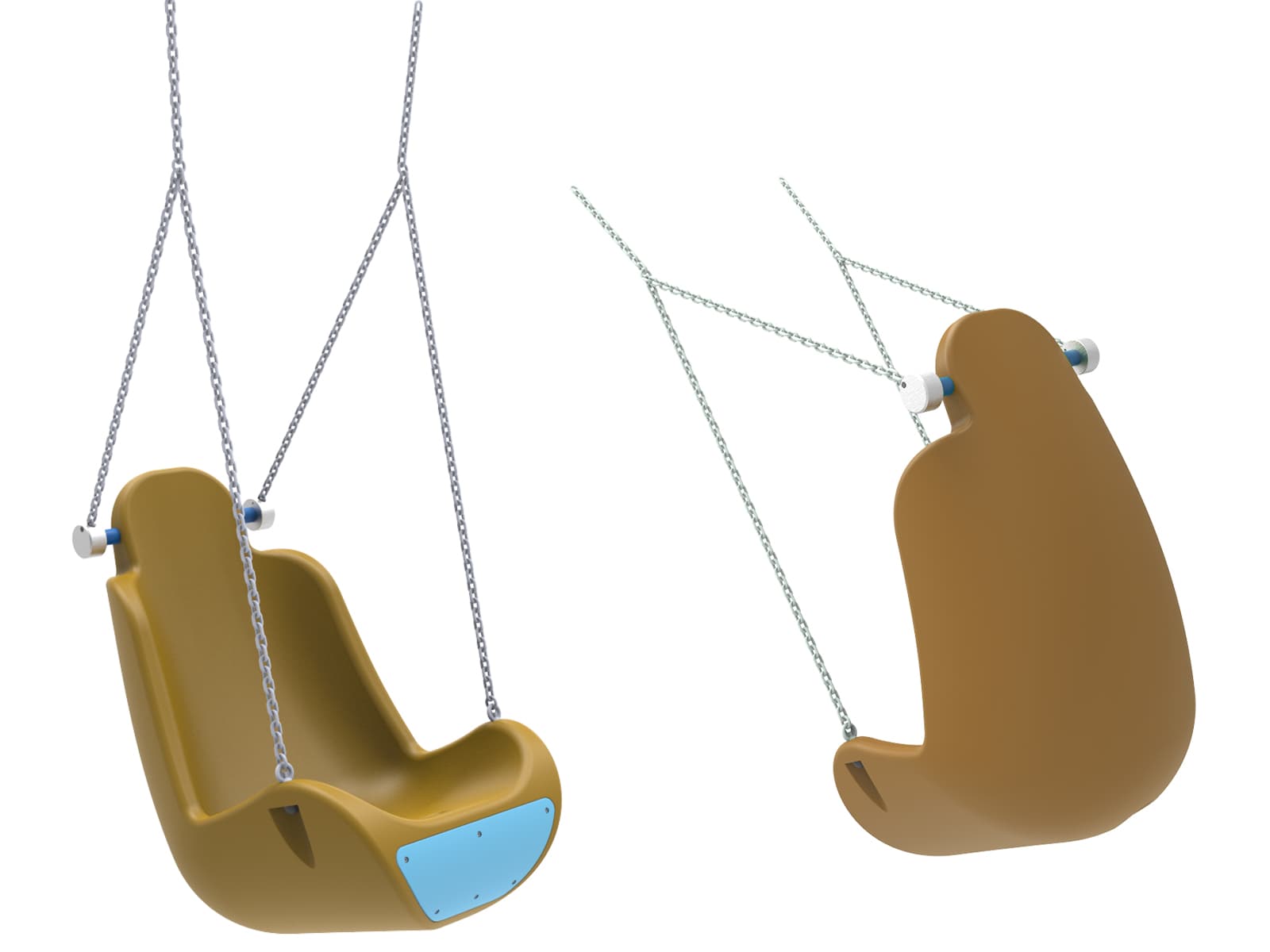

ECO TUBBY SWING SEAT

PE 100% Recycled or Rice Husk

Recommended Age: 5-14 years. Maximum load: 120Kg.

ECO Swing Seat designed according to EN 1176-2.

It is recommended that the user is accompanied by an adult.

Optionally includes suspension chains, for installation in all types of frames that comply with the reference standard.

The drain hole has been designed to prevent water stagnation in the game.

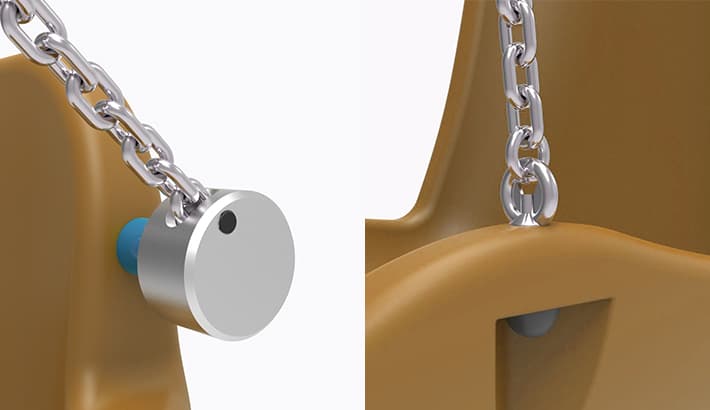

With Chains

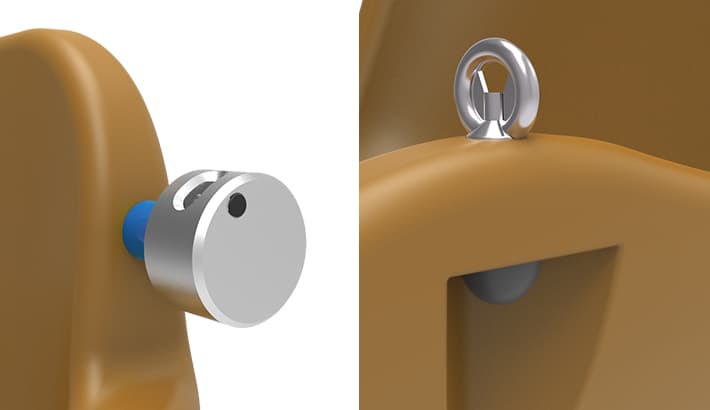

Without Chains

ECO SERIES COLOURS

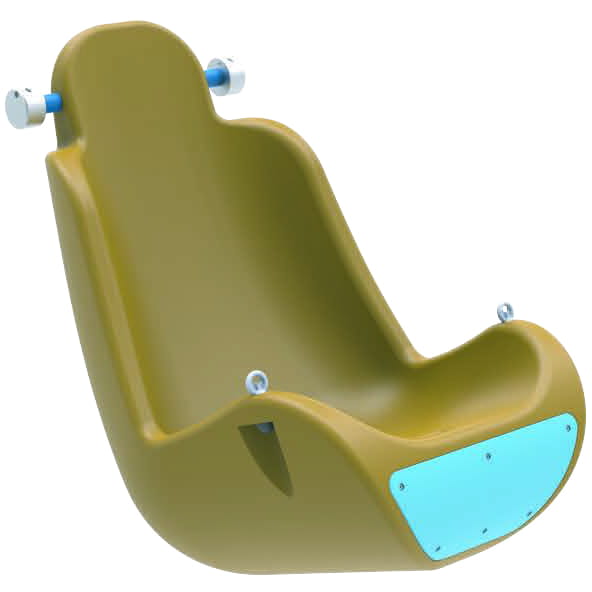

BROWN

Rice Husk

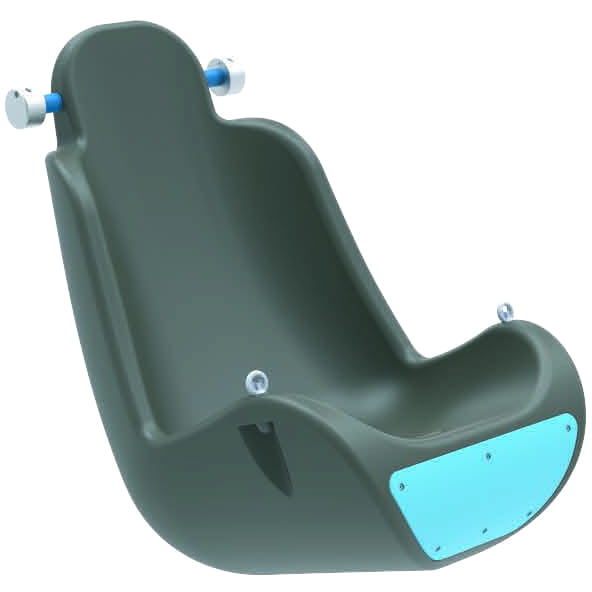

BLACK

Pure Recycled

ROTOPLAY® , manufacture of components for playgrounds.
